EverSolo DMP-A6 Streamers
฿29,900.00
EVER SOLO DMP- A6 Streamers
ES 9038Q2M * 2
DAC Chipset
XMOS XU316
Audio Processer
OPA1642
OPA Chip
LCD DISPLAY
DISPLAY 6 inch
High Precision Clock Oscillators
Shunt Compensation and Circuit
Product Display
Plastic case, the most practical and lightest. The streamlined design and compact body are beautiful
Specifications
EVER SOLO DMP-A6 Streamers
DAC
ES 9038
Audio Processer
XMOS XU316
OUTPUT
RCA Audio Output
Headphone
XLR Audio Output
Model EVERSOLO DMP-A6
Display 6" LCD touchscreen
Internal Memory 4GDDR4 +32GeMMC
DAC ES 9038Q2M*2
Audio Processor XMOS XU316
Op-amp Chip OPA1642
Power Supply Low noise, high quality switching power supplies

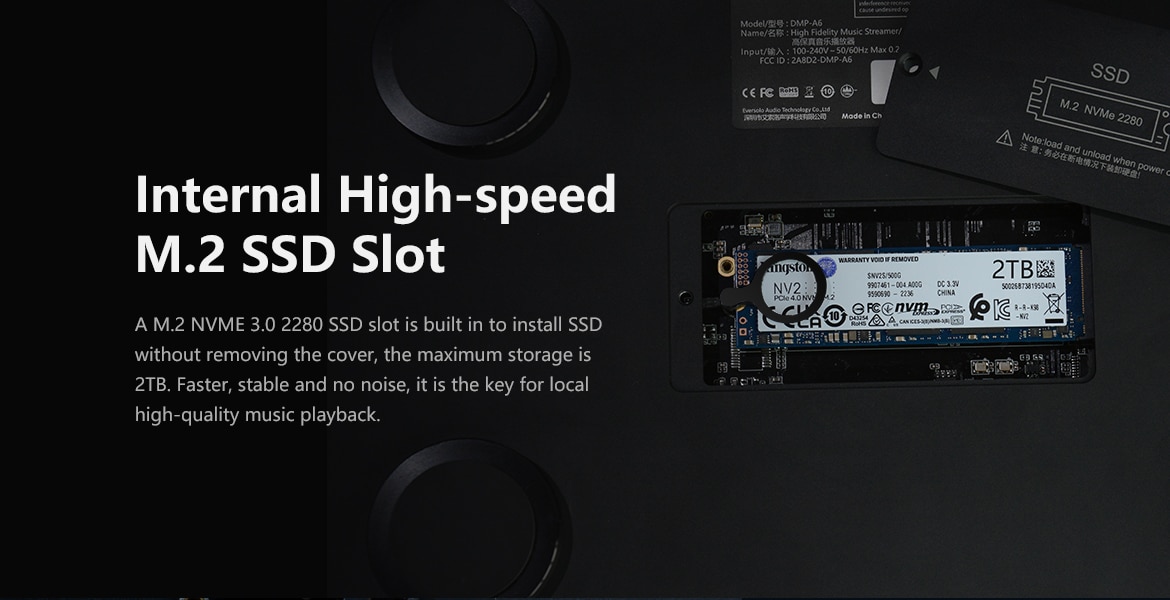

HDD Bay M.2 NVME 3.0 2280 protocol, up to 2TB
USB-A Port USB3.0*2
Ethernet RJ-45(10/100/1000Mbps)
WiFi WiFi 2.4G+5G dual band
Playback and DAC Decoding Support up to stereo DSD512, PCM 768KHz 32Bit, MQA
Music Service Tidal, Qobuz, Highresaudio, Amazon, WebDAV, UPnP
Streaming Air Play, DLNA, Roon Ready, Spotify, Tidal Connect, Qobuz Connect etc.
Bluetooth Audio Input BLuetooth BT5.0, support SBC/AAC/aptX/aptX LL/aptX HD/LDAC
USB-C Audio Input USB Audio Compatibility: Windows (7, 10), Mac, Android, IOS
Support up to stereo DSD512, PCM 768KHz 32Bit, MQA Optical/Coaxial Audio Input
Support up to stereo DSD512, PCM 768KHz 32Bit, MQA Optical/Coaxial Audio Input
Support up to stereo PCM 192KHz 24Bit, DSD64 Dop, MQA Optical/Coaxial Audio Output

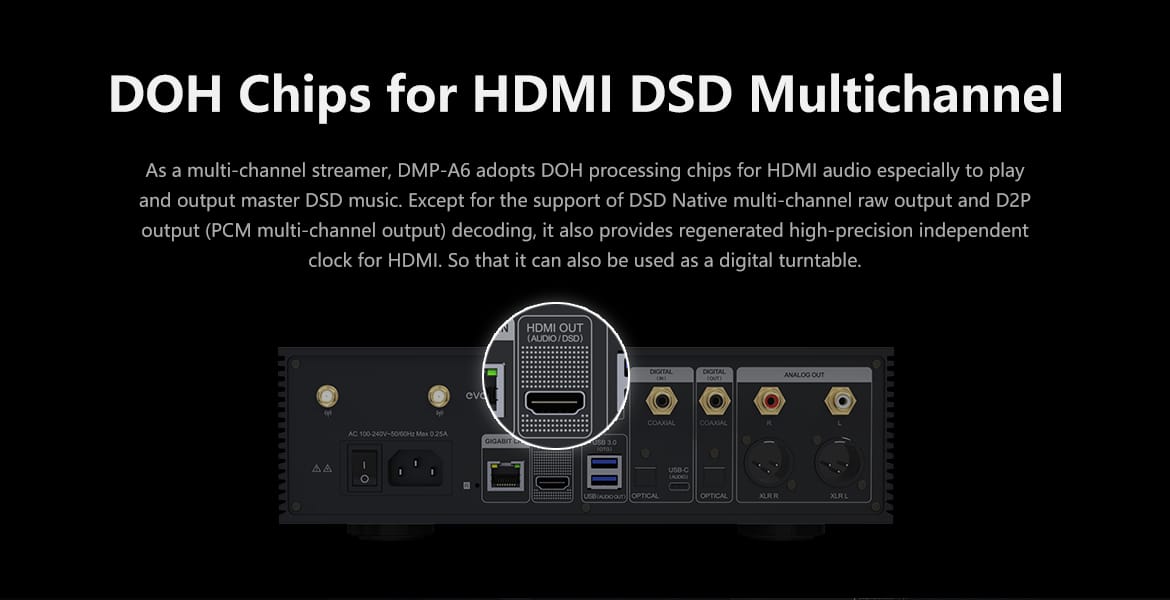

Support up to stereo PCM 192KHz 24Bit, DSD64 Dop, MQA HDMI Audio Input
DSD64 Native multi-channel/PCM192KHz multichannel raw output Control Method
Mobile App，Touch screen control
XLR Output Audio Characteristics
Output level: 5.2V
Frequency response: 20Hz~20KHz(±0. 15dB)
Dynamic range: > 128dB
SNR: >128dB
THD+N: <0.00009%(-120dB) @A-wt
Crosstalk: >-125dB
Frequency response: 20Hz~20KHz(±0. 15dB)
Dynamic range: > 128dB
SNR: >128dB
THD+N: <0.00009%(-120dB) @A-wt
Crosstalk: >-125dB
RCA Output Audio Characteristics
Output level: 2.6V
Frequency response: 20Hz~20KHz (±0. 2dB)
Dynamic range: > 124dB
SNR: >124dB
THD+N: <0.00011%(-119dB)@A-WT
Crosstalk: >-124dB
Frequency response: 20Hz~20KHz (±0. 2dB)
Dynamic range: > 124dB
SNR: >124dB
THD+N: <0.00011%(-119dB)@A-WT
Crosstalk: >-124dB
PSU AC 110~240V 50/60Hz
Rated Power 13W
Dimensions L 187mm* W 270mm* H 90mm
Packing List Power cable*1, USB cable*1，Screwdriver*1，user manual*1
