Beelink SER 6 Max 7735HS
฿21,000.00
Specifications สเปคเครื่องรุ่น Beelink SER 6 MAX ล่าสุด ปี 2023
CPU : AMD Ryzen™ 7 7735HS Base 3.20 GHz boost to 4.75GHz
GPU : 12 Cores 2200 MHz Frequency
SSD : M.2 2280 PCIe 4.0 500GB or 1TB SSD
Memory : Dual SO-DIMM 32GB DDR5
Color : Green
AMD Ryzen™ 7 7735HS
CPU
Dual M.2 PCIe4.0
Memory
Dual SO-DIMM
Storage
WiFi 6
Wifi
BEELINK SER 6 MAX
AMD Ryzen™ 7 7735H
8C/16T
32GB DDR5
Dual SO-DIMM
1TB SSD
M.2 2280 PCIe 4.0 SSD
2.5Gbps
LAN
HDMI Support 4K
144Hz
WiFi 6
2.4 Gbps
AMD Ryzen™ 7 7735HS
SER6 Max offers excellent performance. The Max Turbo frequency can reach 4.75GHz. Turbo TDP can reach 54W. Test results are for reference only, and the actual performance may vary due to environmental changes.
Magnetic Power Supply
4+2+1 Power Supply Module . The magnetic DC connector is on the bottom side of the SER7, making room for more ports on the back.
Full-featured Dual USB4
Fast data transfer enables more efficient work and entertainment.
*If you want to use USB4 port(PD3.0 100W) for power supply, please set TDP to 54W in BIOS, which supports 20V/5A max.
*Please be sure to connect 120W power adapter to DC port for power supply if you set the TDP to 65W.
Dual SO-DIMM DDR5Dual SO-DIMM DDR5
SER6 Max adopts two SO-DIMM slots for DDR5-4800MHz RAM, which can support up to 64GB of dual-channel memory. The retail unit ships with 32GB (16GB*2) DDR5 RAM. The device also comes with a pre-installed M.2 2280 NVMe SSD with a capacity of 500GB or 1TB in PCIe 4.0 x4 format. Furthermore, users have the option of adding an extra M.2 2280 NVMe SSD. One of the two M.2 slots can be turned into a 2.5-inch HDD/SSD interface with an expansion board (optional), please contact customer service for help before replacement. The expansion board needs to be purchased separately.
MSC Technology-Vapor Chamber and System Fan
Vapor chamber quickly distributes the CPU heat to the plate, achieving efficient heat dissipation. The system fan and SSD heat sink dissipate the heat for the system, utilizing the airflow to provide efficient cooling for SSD and DDR.

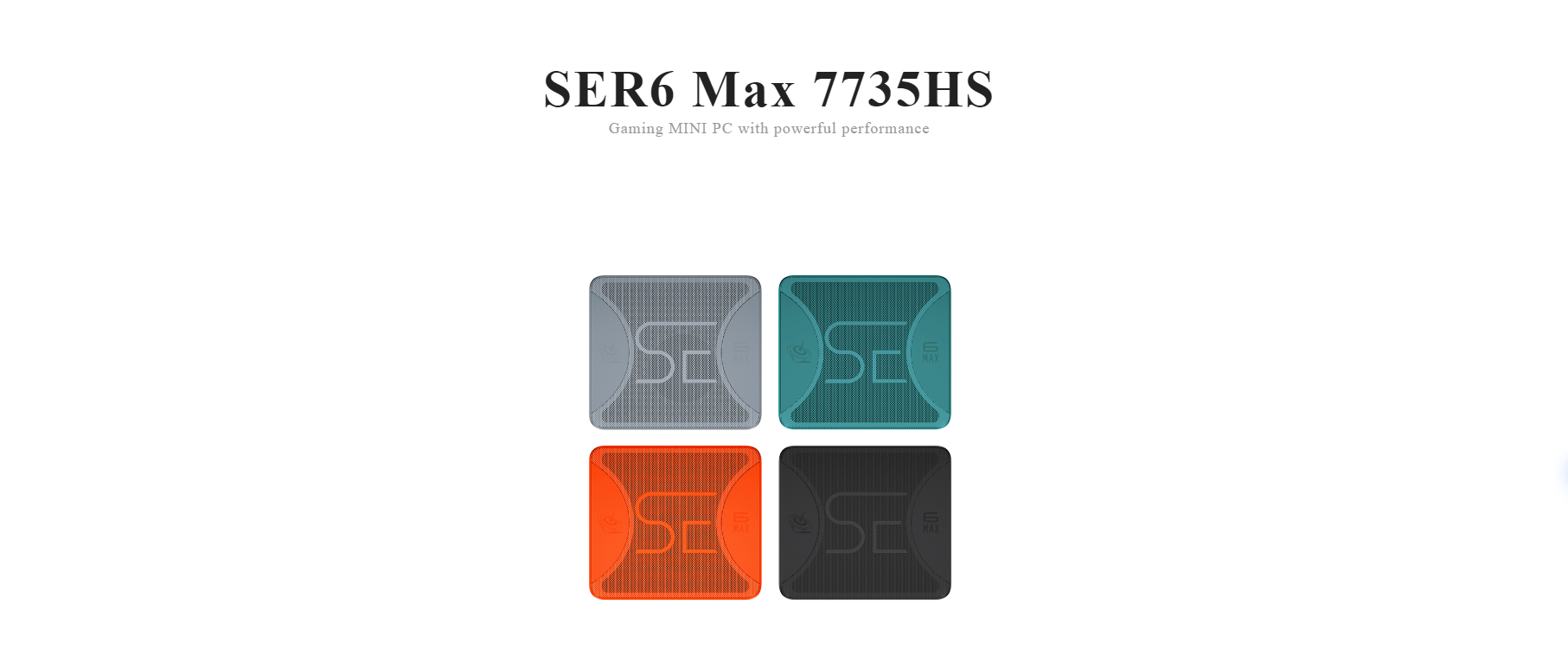

Stylish Design with Multiple Color Options
Four color options, there must be one that suits you.
RDNA2 Graphics Card Architecture Game Frame Rate Test
Testing environment: AMD Ryzen7 7735HS processor with Radeon 680M,DDR5 64GB(32GB*2) 4800MHz memory, PCle4.0 1TB SSD,54W TDP,1080P, 30°C ambient temperature.
Product Structure
